Contact Plating

Tin

Mount

Surface Mount

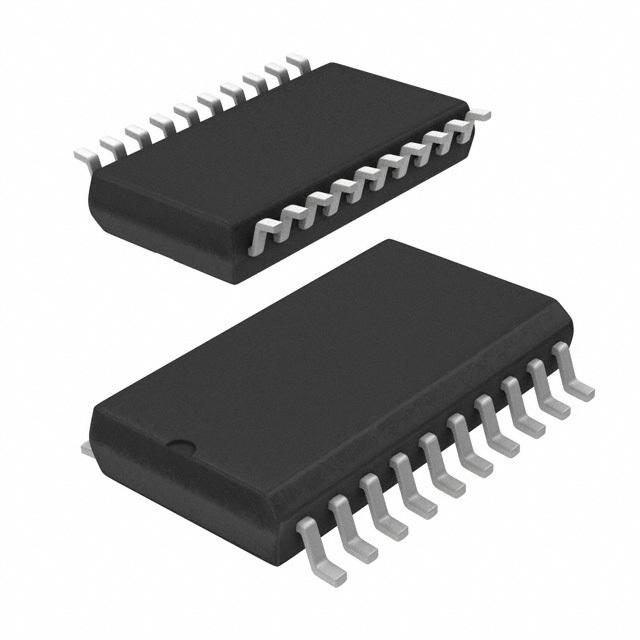

Package / Case

SOIC

Number of Pins

20

Clock-Edge Trigger Type

Positive Edge

Number of Elements

1

Published

2009

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Discontinued

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Max Operating Temperature

85°C

Min Operating Temperature

-40°C

Additional Feature

WITH HOLD MODE

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

5V

Time@Peak Reflow Temperature-Max (s)

30

Pin Count

20

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Polarity

Non-Inverting

Power Supplies

5V

Temperature Grade

INDUSTRIAL

Max Supply Voltage

5.25V

Min Supply Voltage

4.75V

Load Capacitance

50pF

Number of Bits

8

Propagation Delay

7.2 ns

Quiescent Current

1mA

Turn On Delay Time

7.2 ns

Family

FCT

Logic Function

AND, D-Type

Output Characteristics

3-STATE

Logic IC Type

D FLIP-FLOP

High Level Output Current

-15mA

Low Level Output Current

12mA

Capacitance - Input

6pF

Length

12.8mm

Width

7.6mm

Thickness

2.34mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
